รวมรายชื่อ G code Sender สำหรับ GRBL CNC Controller

รวม โปรแกรม G Code Sender สำหรับ GRBL



ชนิด

Link

รายละเอียด

SD Card G Code Sender

SD Card G Code Sender

USE SD Card For Sending Code And Control GRBL Like Mach3 BY Panmaneecnc Team

G code sender

GcodeSender

G-code sender โดย Otto Hermansson

G code sender

GCtrl

Processing Script to stream Gcode

G code sender and previewer

Universal-G-Code-Sender

จาวา สคริปโดย Will Winder. Cross-platform (Win32, Win64, Linux, MacOS).
มีความสามรถเพิ่มเติม
: Truncate decimal point precision to a configurable amount, Remove whitespace, Remove comments, Override speed rates, Arc to line conversion.

G code sender and previewer

Grbl Controller

Cross-platform graphical Grbl Controller for Mac, Windows and Linux originally written by Kosme, currently maintained by zapmaker. Allows you to jog X, Y, Z, and see the current position. Newer versions include a previewer, v3.4 will trim too-long lines

G code sender

grblfeeder

Python serial terminal designed for sending gcode files to a microcontroller running grbl.

G code sender

PythonCNCGUI

HMI/GUI done in Python using Opengl for graphics is used to interface to modified Simen Grbl CNC code on an Arduino over USB. Operating System Notes: Currently runs well in Linux with Ubuntu and Python2.5. Also in process it now runs in Windows XP 32bit with Python2.7 but comms need to be improved to run faster and gcode files only partial

G code sender

GCode Step and Alignment Tool

Cross-platform GCODE debug/step and alignment tool for Grbl 0.8c or later. with features similar to software debugger. For example usage of breakpoints, change program counter (position), stop and inspection/modification of machine variables, step, run. Especially useful for allowing tool changes during operation.

Web Base G code sender

GRBLweb

Web based Gcode Sender

Web Base G code sender and remote web interface

Octoprint for CNC / Grbl by PxT

Web base Gcode Sender

GCode Teleporter

GCode Teleporter

GCode Viewer/Simulator, GCode Truncater, Gcode Scaler (under dev) and Web Cam support

Steuersoftware JCNC V1.03

Steuersoftware JCNC V1.03



ปัญหาบางส่วน ของ GRBL CNC Controller



ตามภาพข้างบน ระวังเรื่องการ สั่ง G01 เนื่องจาก F=0 จะทำการกด JOG ไม่ได้ เนื่องจากการ Jog ในโปรแกรมนี้ใช้ G1 การใช้ G1 ต้องมีค่า F เสมอ
วิธีการแก้ใข ต้องสั่ง F ก่อนการใช้งาน ใน MDI Mode ตามภาพข้างล่าง นี้

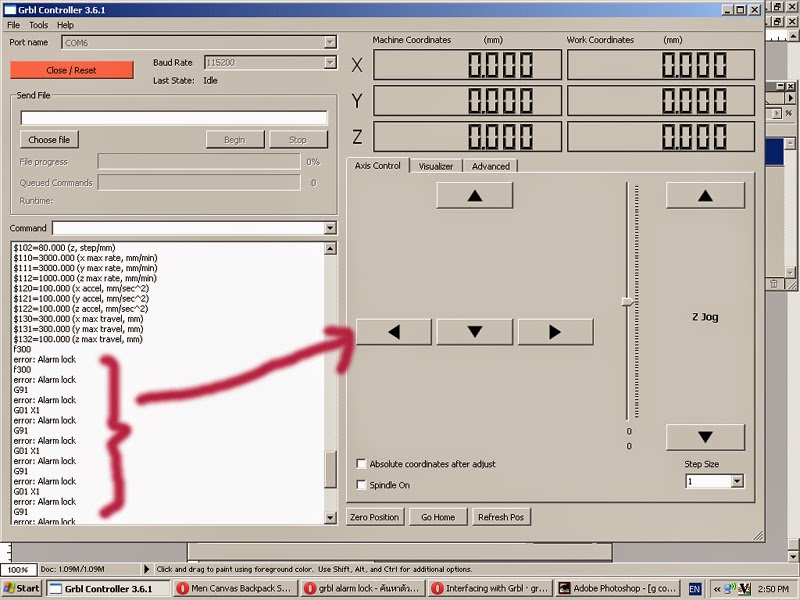

การใช้คำสั่ง ภายหลังการ Connect GRBL V0.9i จะมี Alarm Lock เนื่องจาก การ Enable Home Limit
การแก้ใข จะต้องส่งคำสั่ง $X เพื่อ Unlock จึงจะทำงานต่อไปใด้








การแก้ Alarm Lock โดยการ Disable Homing $21=0
ยังมี โปรแกรม G code sender อีกหลายตัวนะครับ ที่ไม่สมบูรณ์ ทำให้การใช้งาน ไม่ราบรื่น นะครับ เราเองก็พยามพัฒนา SD Card Gcode sender ให้ทำงานได้คล่องตัวใกล้เคียง Mach3 มากที่สุด


GCode Teleporter

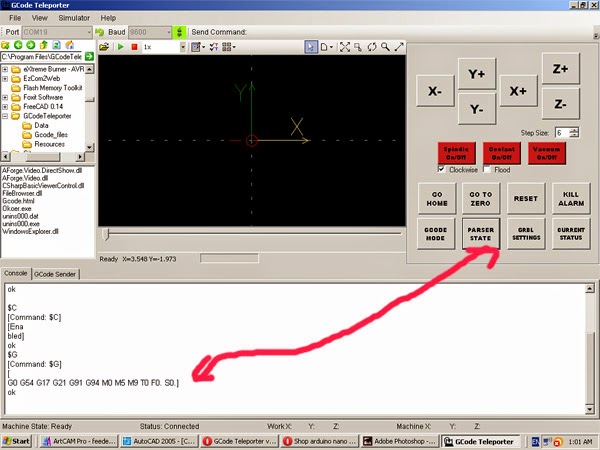

ได้ทำการทดลองใช้ แล้ว มีปัญหาการใช้งานพอสมควรครับ ตามรูปข้างล่าง นี้ครับ



หาก Disconnect แล้ว Connect ใหม่ไม่ได้ ต้องออกจาก โปรแกรมแล้ว เข้ามาใหม่ครับ (win XP)



JOG ครั้ง แรก จะไม่เป็นไปตามค่า ที่ตั้งใว้ จะเดินเท่ากับ 1



ครั้งต่อไปเดินได้ ตาม Jog



Status หลังจากการ RUN File ไม่ถูกต้อง



default การเปิด File หาก Cancle จะเกิด เหตุการตามข้างล่าง



การ set parameter ในโปรแกรมยังทำไม่ได้





ข้างล่างนี้คือความเห็นส่วนบุคคล กรุณาออกความเห็นอย่างสร้างสรรค์

จากปัญหาข้างต้น นี่คือปัญหาหนึ่งของ Open source ตามกระแส ทำให้ ผลงานคุณภาพมีน้อย เนื่องจากขาดแรงจูงใจ ซึ่งปัญหานี้ ได้มีอาจารย์ในมหาวิทยาลัยกล่าวใว้ ก่อนหน้านี้แล้ว จึงอยากให้ Developer ทั้งหลายได้ดูใว้เป็นแง่คิดในการพัฒนาตัวเอง เพื่อให้ได้ผลิตผลงานคุณภาพ ออกสู่สังคม โดยใช้โอกาสของ Open source ดังนั้นก่อนทำการกระจายความรู้ควรพิจารณาให้รอบคอบ มิเช่นนั้น จะเป็นภัยกับชนรุ่นหลัง
